Blondie
      Improvements

bullet02

RC Atrcraft

On August 22, 2008 I changed from rubber bands as the means of holding the Fuel Tank, Receiver & etc. to Velcro on the fuel tank & wire ties on all other components. Following are pictures of these changes

Click on photo to enlarge, click again for full screen

1 Velcro riveted to fuel tank bracket

 Velcro riveted to fuel tank bracket

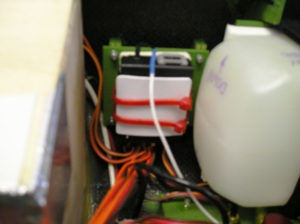

3 Receiver held in place with wire ties

Receiver held in place with wire ties.

5 C & H Ignition Electronics held in place with wire ties

C & H Ignition Electronics held in place with wire ties.

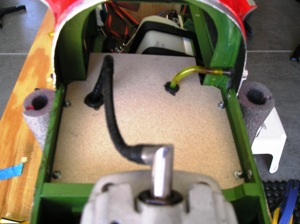

7 C & H Electronics & battery  covered with thin masonite

 C & H Electronics & battery covered with thin masonite.

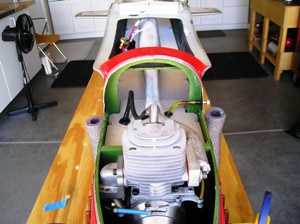

9 Finished installation

 Finished Installation.

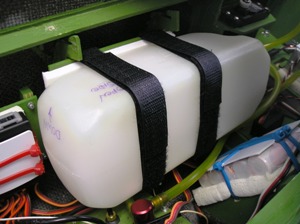

2 24 Oz. fuel tank held in place with Velcro

24 Oz. fuel tank held in place with Velcro.

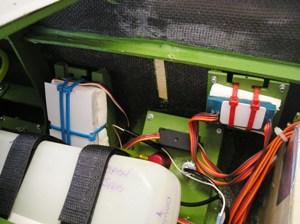

4 Receiver battery & ERD-106 servo reverser

Receiver battery & servo reverser.

6 C & H Electronics covered with Oatey heat protector

C & H Electronics covered with Oatey heat protector.

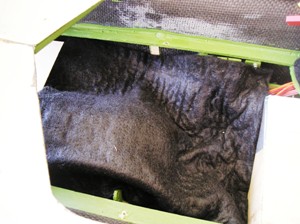

8 Fuel tank, receiver & battery covered with Oatey heat protector

 Fuel tank, receiver & battery covered with Oatey heat protector.

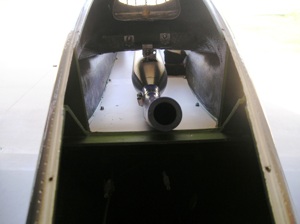

10 Tuned pipe from the rear

Tuned pipe from the rear.
