Bottom Wing

Bottom Wing

Click picture to enlarge to full screen

Bottom Wing Right Section

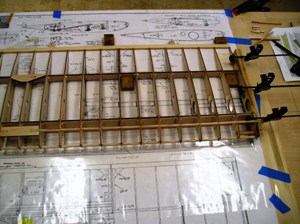

1 Holding wing in place for build 2 Front view

 Holding wing in place for build

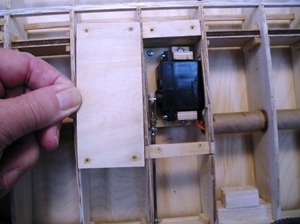

3 Aileron servo hatch on bottom of wing

 Aileron servo hatch on bottom of wing

5 Top of wing

 Top of wing

7 Aileron up

 Aileron up

9 Wing mounting tube & holding screw

 Front view

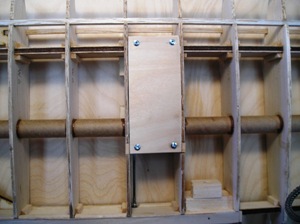

4 Hatch in place

 Hatch in place

6 Aileron centered

Aileron centered

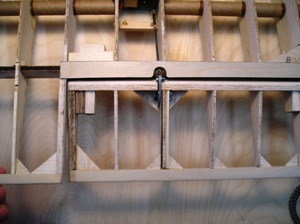

8 Aileron down

 Aileron down

10 Wing mounted in place

Wing mounting tube & holding screw

 Aileron up

11 Setting up landing light on bottom left wing

Setting up landing light on bottom left wing

13 Landing light down & on
12 Landing light up & off

Landing light up & off

14 Rear view of the landing light down & on

Landing light down & on

Rear view of the landing light down & on

15 Better view of servo & landing light 16 Light down but not on for good view of light

Better view of servo & landing light

Light down but not on for good view of light

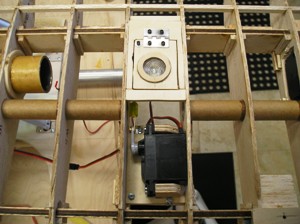

17 Finished rear of light box 18 Buildind servo hatch
bullet02

 Finished rear of light box

Building servo hatch

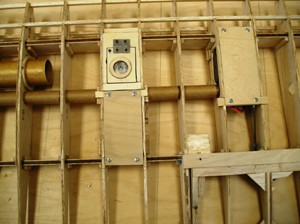

19 Servo hatch finished

 Servo hatch finished

Elevator is next
