Ed Bono

Air Brush Magic

April 21, 2016

Ed Bono of Airbrush Magic, Orlando, FL. painted my Hawker Sea Fury Sawbones pictured below. He is currently painting improvements added to Sawbones for Top Gun 2016.

Ed's website is at: http://airbrushmagicorlando.com/

Press CTL & F5 for updates

Click picture to enlarge, click again to enlarge again.

1 Sawbones at Sunset-Top Gun 2015

 Sawbones at Sunset-Top Gun 2015

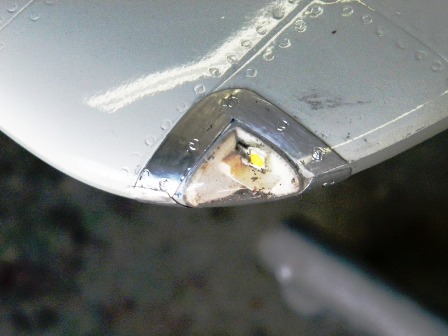

3 Wing tip light frane to be painted

Wing tip light frame to be painted

4a  Wing tip light frame painted

 Wing tip light frame painted

5 Landing Light ready for paint

Landing Light ready for paint)

5b Landing Light painted

 Landing Light painted

8 Fuselage letters must be repositioned on left side

Fuselage letters must be repositioned on left side

8b Fuselage letters being repositioned on left side

 Fuselage letters being repositioned on left side

8d Fuselage letters  clear coated

Fuselage letters clear coated

10 Tail light area must be finished & painted

Tail light area must be finished & painted

11 Two drop tanks & two static tanks to be painted

Two drop tanks & two static tanks to be painted

11b Tanks & pylons painted

 Tanks & pylons painted

12 Trim tab added to right elevator

  Trim tab added to right elevator

13 Trim tabs added to ailrtons

Trim tabs added to ailerons

15 Painting the flying prop

Painting the flying prop

17 Painting the flying prop

Painting the flying prop

20 Painting the flying prop

Painting the flying prop

bullet02

Sawbones Details Added

2 Good side view of Sawbones on display table

 Good side view of Sawbones on display table

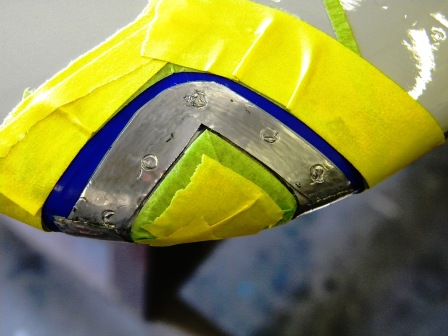

4 Ready for paint

Ready for paint

4c  Wing tip light finished

 Wing tip light finished

5a Landing Light painted

 Landing Light painted

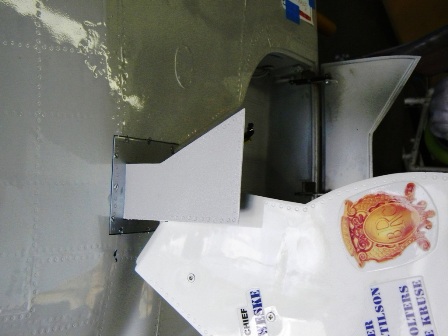

7 New small gear door must be painted

 New small gear door must be painted

8a Fuselage surface ready to add letters on left side

 Fuselage surface ready to add letters on left side

8c Fuselage letters repositioned on left side

Fuselage letters repositioned on left side

8e Fuselage letters match picture of full scale Sawbones

 Fuselage letters match picture of full scale Sawbones

10a Tail light area finished, painted & trim tab added

Fuselage letters must be repositioned on right side

11a Tanks & two pylons equipped with servos to release drop tanks being painted

Tanks & two pylons equipped with servos to release drop tanks being painted

11d Top of tanks painted dark grey

  Top of tanks painted dark grey

12a Trim tab added to left elevator

 Trim tab added to left elevator

14 Painting the flying prop

Painting the flying prop

16 14 Painting the flying prop

Painting the flying prop

19 Painting the flying prop

Painting the flying prop

21 Flying prop  finished

 Flying prop finished
