Wing

viewbook2

 Ailerons

Click picture to enlarge click again to enlarge

viewbook2
1Aeropoxied aileron hainges in wing 2 Close-up of hinge

Aeropoxied aileron hainges in wingr

Close-up of hinge

3 Another close-up of aileron hinge 4 Aileron installed

Another close-up of aileron hinge

 Left Aileron installed

5 Du-Bro heavy duty control horn Aeropoxied into the aileron
12 Du-Bro llinkage connected to JR Servo. Aileron

 Du-Bro heavy duty control horn Aeropoxied into the left aileron

Du-Bro llinkage connected to JR Servo. Aileron

13 Aileron up

 Aileron up

 Flaps

Click picture to enlarge click again to enlarge

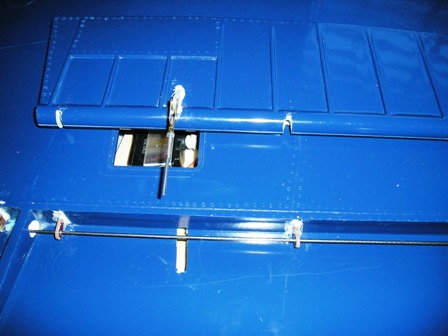

6 Outboard right wing flapheld in place by steel rod 7 Steel rod bing pushed in place

 Outboard right wing flap held in place by steel rod

 Steel rod bing pushed in placed

8 Both flaps are down1

Both flaps are down

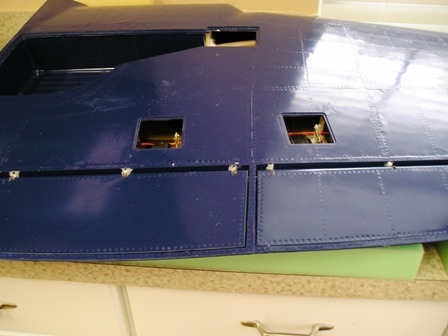

10 Flap linkage connected to Jr Servo & is operational
9 Good side view of flaps extended

 Good side view of flaps extended

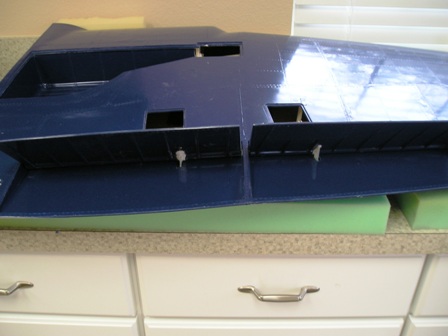

11 Flaps down

 Flap linkage connected to Jr Servo & is operational

Flaps downn

bullet02

Wing Hatches
