 Wing Hatches

Click picture to enlarge click again to enlarge

viewbook2
1Cormer pads being added using Aeropoxy glue. 2 Ready to install

Cormer pads being added using Aeropoxy glue.

Ready to install

3 Left bottom corner in place 4 Ready to install right corner

 Left bottom corner in place

 Ready to install right corner

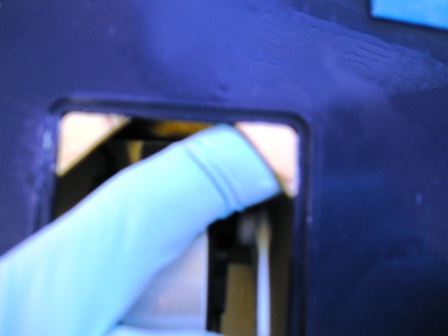

5 Insatlling 6 Outboard flap pads installed

 Installingn

 Outboard flap pads installed

7 2-56 Blindi nuts installed
7 Left outboard flap finished

 2-56 Blindi nuts installed

 Left outboard flap finished

8 Aileron corner pads all installed 9 Left aileron ready for hatch cover

 Aileron corner pads all installed

 Left aileron ready for hatch cover

10 Left flap hatch finished
bullet02

 Left flap hatch finished
