S 250 Moki Engine
Click picture to enlarge click again to enlarge
June 27, 2015
Choke & throttle linkage made & connected
Choke open & throttle closed
Another view of set-up
Choke closed & throttle open
Throttle connection
Low & high speed set screws
Exhaust outlets
Test fitt
S 250 Moki ready to install on fuselage
Test fit
29 x 16 four blade prop with 6.375 inch spinner
Moki ignition modual & four batteries installed
Relocated Moki ignition module for easier assembly to enginet

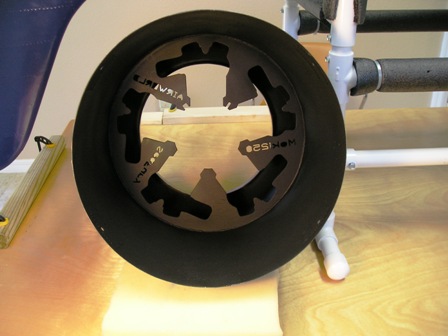

Baffle & inside of cowl painted flat black after bring installed with Aeropoxy glue
Right exhaust Extension
Right exhaust with cowl installed
Moki S 250 with baffle installed in cowl
Control Panel Hatch
Front of baffled
Left exhaust extension
Left exhaust with cowl installed
Increased opening around exhaust outlets for better air flow
